2020 New Jeep Gladiator Sport vs. Sport S vs. Overland vs. Rubicon
With 4 available trim levels available, choose the Gladiator trim level that best suits your adventurous needs. The product specialists at Woody’s Automotive Group in Chillicothe, Missouri have highlighted the key features of each model below.
If you’d like to speak with one of our specialists before we begin, call our team at 660-646-3455 or use our online contact form to get in touch.
• Best-in-Class Towing and Payload
• Durable 5-ft steel cargo box with LED cargo lighting and easy-lowering damped 3-position tailgate
• Trail Rated 4×4 capability with Command-Trac two-speed transfer case featuring 2.72:1 low gear
• Third generation heavy-duty Dana 44 solid axles
• Removable top and doors and fold-down windshield
• Lockable behind rear seat storage
• ParkView Rear Back-Up Camera
17-inch full-face Low-Gloss Black steel wheels
• 3.73 axle ratio • Black fender flares
• Two front/one rear tow hooks
• Halogen headlamp lighting • Push-to-start button
• Uconnect 3 with 5-inch Display with hands-free voice command and Bluetooth music streaming
• 3.5″ TFT Driver Information Display
• Rear underseat storage
• Tilt/telescopic steering column
• Pillar grab handles • Manual windows and locks
• Two-way lumbar support (driver only)
• Full-size spare tire AVAILABLE FEATURES/PACKAGES:
• New roll-up tonneau cover featuring Weekend Warrior mode
• Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Max Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Third generation Dana 44 heavy-duty wide track solid axles with 4.10 gear ratio – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Trac-Lok limited-slip rear differential
• 17-inch Tech Silver aluminum wheels
• Power windows, power heated mirrors and power locking doors and tailgate
• Remote Keyless Entry
• Available Uconnect 4 with 7-inch touchscreen display featuring Apple CarPlay support and Android Auto integration, hands-free voice command and Bluetooth streaming audio
• Available 115-Volt power outlet in truck bed
• Available industry-exclusive removable Bluetooth wireless speaker
• Automatic headlamps • Security alarm
• Sun visors with illuminated vanity mirrors
• Power heated mirrors • Deep tint glass
• Leather-wrapped steering wheel
AVAILABLE FEATURES/PACKAGES:
• New roll-up tonneau cover featuring Weekend Warrior mode
• Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Max Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Third generation Dana 44 heavy-duty wide track solid axles with 4.10 gear ratio – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Trac-Lok limited-slip rear differential
• Jeep® Active Safety Group – ParkSense Rear Park Assist – Blind Spot Monitoring and Rear Cross-Path Detection – LED tail lamps
• Jeep Advanced Safety Group – Adaptive Cruise Control – Forward Collision Warning with Active Braking
• Premium 9-speaker audio group
• Cargo Management Group – Three box rails and four adjustable anchor pods – 115-volt bed power outlet – Lockable rear under seat storage bin
• Cold Weather Group – Heated front seats – Heated steering wheel – Remote start • Convenience Group – Remote start – Universal Garage Door Opener (UGDO)
• 17-inch Tech Silver aluminum wheels
• Power windows, power heated mirrors and power locking doors and tailgate
• Remote Keyless Entry
• Available Uconnect 4 with 7-inch touchscreen display featuring Apple CarPlay support and Android Auto integration, hands-free voice command and Bluetooth streaming audio
• Available 115-Volt power outlet in truck bed
• Available industry-exclusive removable Bluetooth wireless speaker
• Automatic headlamps • Security alarm
• Sun visors with illuminated vanity mirrors
• Power heated mirrors • Deep tint glass
• Leather-wrapped steering wheel AVAILABLE FEATURES/PACKAGES:
• New roll-up tonneau cover featuring Weekend Warrior mode
• Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Max Trailer Tow Group – Heavy-duty cooling – Heavy-duty 240-amp alternator – Class IV receiver hitch – Third generation Dana 44 heavy-duty wide track solid axles with 4.10 gear ratio – Trailer hitch zoom (ParkView Rear Back-Up Camera)
• Trac-Lok limited-slip rear differential
• Jeep® Active Safety Group – ParkSense Rear Park Assist – Blind Spot Monitoring and Rear Cross-Path Detection – LED tail lamps
• Jeep Advanced Safety Group – Adaptive Cruise Control – Forward Collision Warning with Active Braking
• Premium 9-speaker audio group
• Cargo Management Group – Three box rails and four adjustable – 115-volt bed power outlet – Lockable rear under seat storage bin
• Cold Weather Group – Heated front seats – Heated steering wheel – Remote start
• Convenience Group – Remote start – Universal Garage Door Opener (UGDO) anchor pods
• Rock-Trac two-speed transfer case with 4:1 low gear, supported by 4.10 front and rear axle ratios for up to 84:1 crawl ratio
• Tru-Lok locking front and rear differentials
• LT285/70R17C A/T off-road tires with33-inch diameter
• High-clearance fender flares • Electronic disconnecting front sway bar
• FOX 2.0 Performance shocks
• Vented Rubicon hood and steel off-road rock rails for cab and bed
• Available segment-exclusive TrailCamoff-road camera
• Available Uconnect 4C NAV with 8.4-inch touch screen, Navigation, Apple CarPlay support and Android Auto integration
• Available industry-exclusive removable Bluetooth wireless speaker
• Available body-color Freedom Top hardtop
• Available body-color high-clearance fender flares
• 17” aluminum polished/painted GraniteCrystal wheels
• Steel off-road rear bumper
• Grille accents
• Two Red tow hooks in front and rear
• Uconnect 4 with 7-inch touchscreen display featuring Apple CarPlay support and Android Auto integration, hands-free voice command and Bluetooth streaming audio • 7-inch TFT Driver Information Display
• Dual-zone Automatic Temperature Control
• Universal Garage Door Opener (UGDO)
• Jeep® utility grid system
• 115V aux power outlet
ADDITIONAL AVAILABLE FEATURES/PACKAGES:
• New roll-up tonneau cover featuring Weekend Warrior mode
• Winch-capable steel front bumper
• Trailer Tow Group– Heavy-duty cooling– Heavy-duty 240-amp alternator– Class IV receiver hitch– Trailer hitch zoom (ParkView RearBack-Up Camera)
• Refined Black/Dark Saddle leather-trimmed seating and interior details
• Signature LED exterior lighting
• Jeep Active Safety Group– ParkSense Rear Park Assist– Blind Spot Monitoring and RearCross-Path Detection– LED tail lamps
• Jeep Advanced Safety Group– Adaptive Cruise Control– Forward Collision Warning with Active Braking
• Cargo Management Group– Three box rails and four adjustable anchor pods– 115-volt bed power outlet– Lockable rear underseat storage bin
Why Buy the 2020 Jeep Gladiator?
1. Best-in-Class* Towing (7,650 lb) and Best-in-Class Payload (1,600 lb)
2. Only Open-Air Freedom Pickup Truck in the Industry† with removable tops and doors and fold-down windshield
3. All Jeep® Gladiator models are Trail Rated with standard tow hooks in front and back, and skid plates
4. Jeep Gladiator Rubicon is the Most Off-Road Capable Mid-Size Pickup Ever‡
5. Class-Exclusive lockable rear seat storage (behind) and removable underseat storage bin
6. Standard 4×4 with heavy-duty Dana 44 front and rear axles
7. Segment-exclusive* available TrailCam off-road camera with grid lines
8. Advanced technology with an available Uconnect 4C NAV with 8.4″ Display system
9. Industry-first* available/removable Bluetooth wireless speaker
10. Over 80 standard and available safety and security features, including Blind Spot Monitoring with Rear Cross-Path Detection,
Adaptive Cruise Control and Forward Collision Warning with Active Braking
15 Segment-Exclusive Features

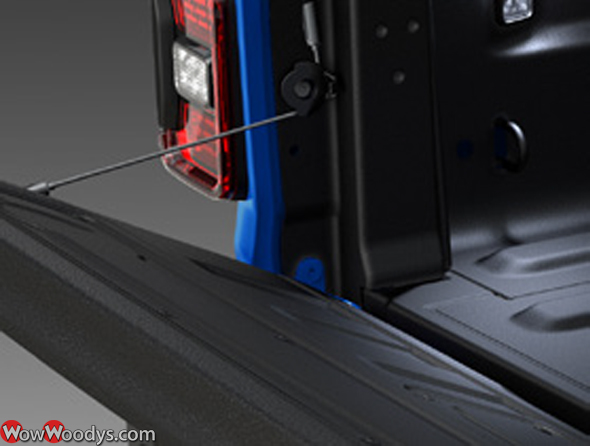

• Aluminum construction and dampened opening feature provide easy and controlled open-and-close operations
• Can be set to open, mid or closed positions
• To use mid-position, open the tailgate to near mid-position
– Secure the tailgate by looping the tailgate straps behind the circular retainer on each box side
– When transporting plywood, insert 2×4 and 2×6 wood pieces horizontally in stamped pockets inside the truck bed for support
• Due to the presence of the Center High-Mounted Stop Light (CHMSL), removal of the tailgate is not recommended
Jeep Gladiator Rear underseat storage area/available lockable rear underseat storage (All models)
• Tire jack is stored on the passenger-side
• Bolt bin is on the driver-side (easily removable if desired)
– Makes it easy to store the loose bolts from removing doors, tops or under
seat storage as well as storing bolts removed to fold windshield
– Lid is removed by pulling on the strap on top
– Bolt bin lid indicates the corresponding number of bolts and their
locations under the lid in Petroglyph style
• Underseat divider wall (non-locking) is attached to the floor with four bolts
and can be used for storing miscellaneous items in cabin-wide area by
folding up the bottom of the rear seat
• Available lockable/removable underseat bin provides additional secure
storage when top or doors are removed
– Two different sized doors correspond to rear seat cushions and are
independently lockable
– Lockable bin can be removed by removing four bolts that attach the bin to
the vehicle floor

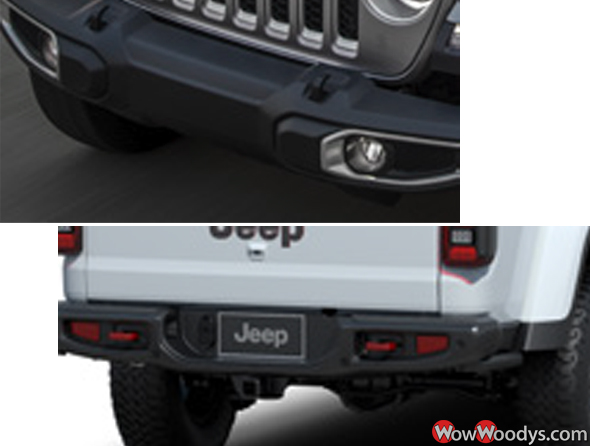

Jeep Gladiator Tow Hooks
• Front tow hooks (2 Black); rear tow hook (1 Black) on Sport, Sport S and Overland
• Front tow hooks (2 Red); rear tow hooks (2 Red) on Rubicon
• For emergency off-road recovery only, to rescue a vehicle stranded off-road. (Do not use for tow truck hookup or highway towing)
• It is recommended to use both of the front tow hooks to minimize the risk of damage
• Always use an appropriately rated tow strap (NOTE: chains are not recommended for freeing a stuck vehicle. Chains may break causing serious injury or death)

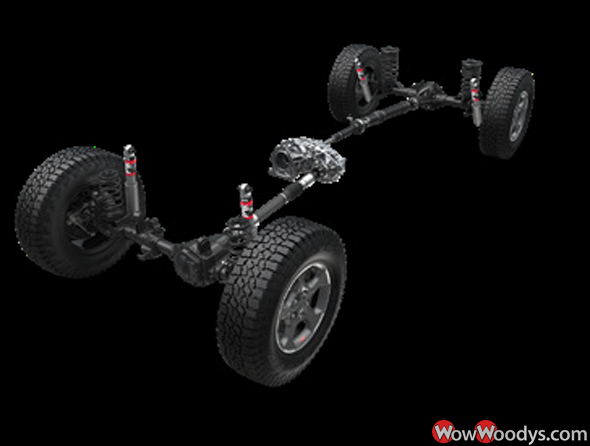

Jeep Gladiator Rock-Trac 4×4 System
• Transfer case features 4:1 low range gear
• Front and rear axle feature 4.10:1 ratios
• Impressive crawl ratios of 84.2:1 with the standard six-speed manual
transmission and 77.2:1 with the available eight-speed automatic
• Front and rear axles also feature Tru-Lok Electronic Locking Differentials for enhanced traction in the most rugged conditions

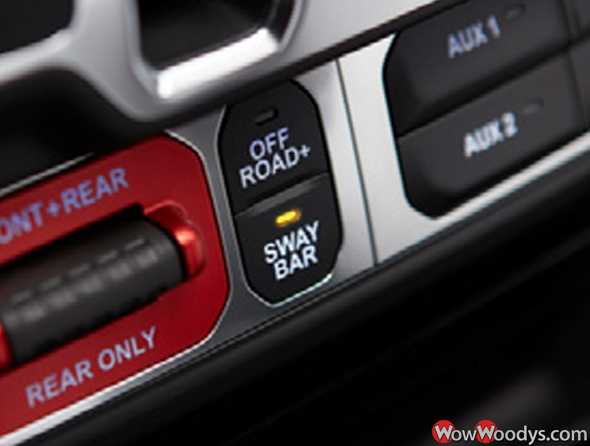

Jeep Gladiator Electronic disconnecting front sway bar
• Allows greater front suspension travel in off-road situations
• Controlled by the Sway Bar switch located on the instrument panel (to the right of the steering column)
• Sway Bar Indicator Light (located in the instrument cluster)
– Illuminates when the bar is disconnected
– Flashes during activation, or when activation conditions are not met
• Sway Bar should remain connected during normal driving conditions
Jeep Gladiator 33-inch All-Terrain light truck tires
• 33-inch LT285/70R17C A/T (All-Terrain) light truck tires provide enhanced
off-road capabilities, excellent on-road performance and all-season
versatility, especially traction in light snow
• Help give Rubicon an outstanding 11.1 inches of ground clearance.
• Available 33-inch LT285/70R17C M/T (Mud-Terrain) light truck tires
feature aggressive tread lugs that help propel the vehicle through the most
challenging off-road conditions including deep mud and slippery rocks
• High clearance fender flares accommodate installation of up to 35-inch
tires with a 2-inch lift (Rubicon)
• No body modifications needed to install 35-inch tire
Jeep Gladiator Sunrider soft top
• Features easy-to-use zipperless closures design; available in vinyl and premium fabrics
• Built-in water management features keep the interior dry
• Rear window panel can be both rolled up or removed for partial open-air feel
• Spring-loaded side links allow top to glide into open Sunrider position, and
two hook-and-loop fasteners (provided in center console) secure the top in
this position
Jeep Gladiator Removable doors
• Removable front and rear doors contribute to wide-open driving experience
• Able to store bolts in special underseat bolt bin for convenient retrieval
• Designed for off-road operation only
• Driving on public roads without doors removes the protection to occupants
that doors provide
Jeep Gladiator Three-piece Freedom Top hardtop
• Light and easy-to-remove hardtop
• Enjoy a full open-air experience by removing all three sections, or let in the
sun by just removing the two front panels
• Available in Black on all trim levels and body-color on Overland
and Rubicon
Jeep Gladiator Fold-down windshield
• Lightweight frame made of aluminum for easy lowering and raising motions
• Remove the two windshield wipers and four Torx head fasteners along
the interior of the windshield (and store all mounting bolts in the original
threaded holds for safekeeping)
• Header bar remains to protect passengers along with rearview mirror and
sun visors
• Lower windshield to rubber hood bumpers and secure with straps
• Before lowering the windshield:
– If the vehicle is equipped with Sunrider Soft Top, the soft top MUST be
lowered, and the door frames must be removed
– If the vehicle is equipped with a Freedom Top hardtop, the Freedom
Panels MUST be removed
• Do not drive the vehicle on-road with the windshield down
• Do not drive the vehicle unless the windshield is securely fastened, either
up or down
• Eye protection, such as goggles, should be worn at all times when the
windshield is down
Jeep Gladiator Off-road pages
• Standard with Uconnect 4C NAV with 8.4″ Display
• Can be launched within the radio or if the Off-Road+ button is pressed
• Allow access to real-time performance data and in-depth diagnostics to provide an optimized experience
• Summary of data is always displayed in the off-road status bar or greater details can be reviewed within the numerous information tabs
• Provides status of steering angle, sway bar, front and rear axle lockers and transfer case
Accessory gauges
• Displays coolant temperature, oil temperature, oil pressure, transmission
temperature (automatic only) and battery voltage
• Displays pitch and roll angles graphically and numerically
TrailCam – Forward-Facing Camera
• Launches the TrailCam Forward-Facing Off-Road Camera
Off-Road pages status bar (located along the bottom of the screen)
• Transfer Case status
• Off-Road+ status
• Latitudes/Longitude GPS coordinates
• Altitude of the vehicle
• Status of Selec-Speed Control and Selected Speed in miles per hour (mph)
Jeep Gladiator TrailCam System:
• Grille-mounted camera highlights off-road obstacles, such as rocks and logs, by displaying an image of what’s in front of the vehicle on the touchscreen display
• To help driver negotiate off-road obstacles, tire path lines that change
dynamically when the steering wheel is turned are overlaid on the camera
image to indicate the current vehicle path
• Includes integrated washer nozzle that can be activated using radio soft
key to clean the camera lens
• Activated by the following methods:
– Press “FWD Camera” soft key on Controls screen
– Press “FWD Camera” soft key on Apps screen
– Press “FWD Camera” soft key on Off-Road Pages
Jeep Gladiator Selectable Tire Fill Alert
• Makes tire inflation or deflation more convenient by providing an auditory
notification when the desired pressure is reached
• Desired deflation or inflation pressure is selected in the radio and can be
set to a minimum of 15 psi
• If the key is cycled on/off, the system defaults to the recommended placard
pressures. At this point you must set the desired pressures again
• Up to two preset pressures can be saved in the radio
• Vehicle must be in Park (automatic transmission) or Neutral (manual
transmission) and the ignition must be in RUN mode
Jeep Gladiator Industry-first removable Bluetooth wireless speaker
• Docking station behind rear seat back houses a removable wireless speaker
on the passenger side
• Weight: 3 lb; dimensions: 10″ x 5.5″ x 2.75″
• Charged by vehicle power when in the vehicle storage location and engine
is running
• Capable of charging other devices connected to its USB Port
• Can be paired with the speaker from another Jeep® Gladiator to play true
left/right stereo audio
• Carries the electronics industry’s highest rating for dust protection
• Protected from immersion in water with a depth of up to 3.3 feet (1 meter)
for up to 30 minutes
